8 Orchids

Project Details

0
square feet
0
days to erect
Location: Oakland, CA
Owner: Bayrock Residential
GC: JR Roberts
Engineer: FBA Engineers
Architect: HDO Architects

Project Narrative

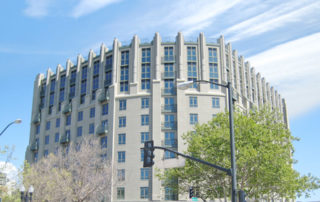

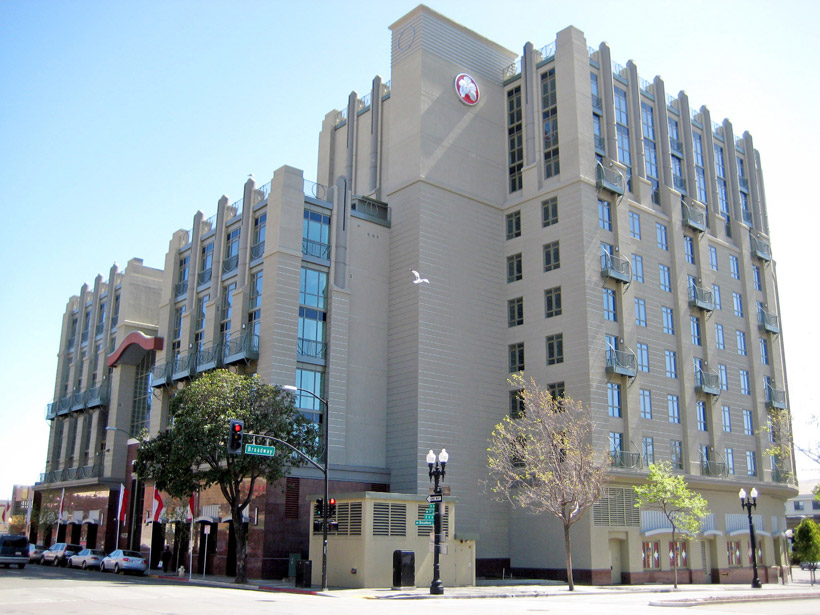

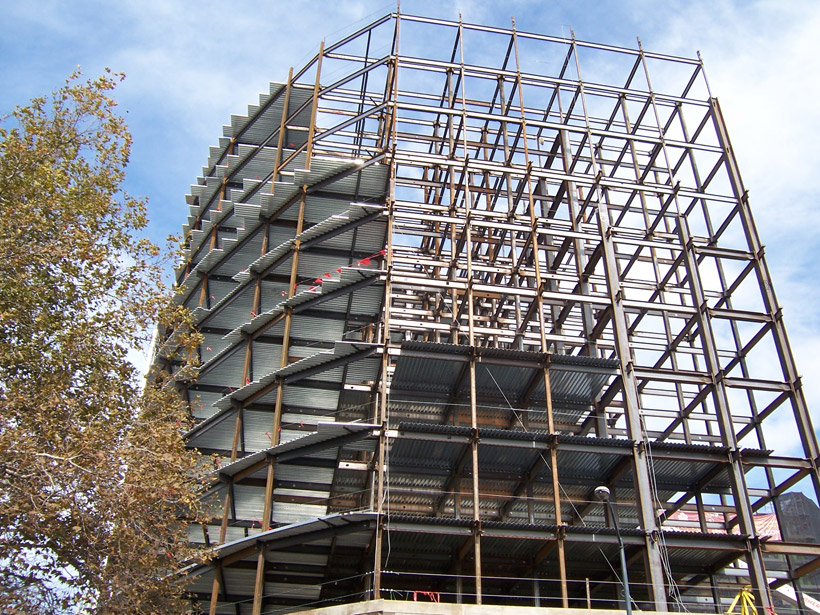

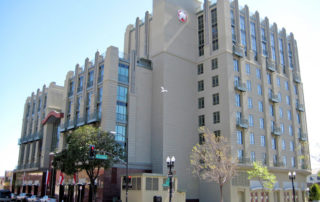

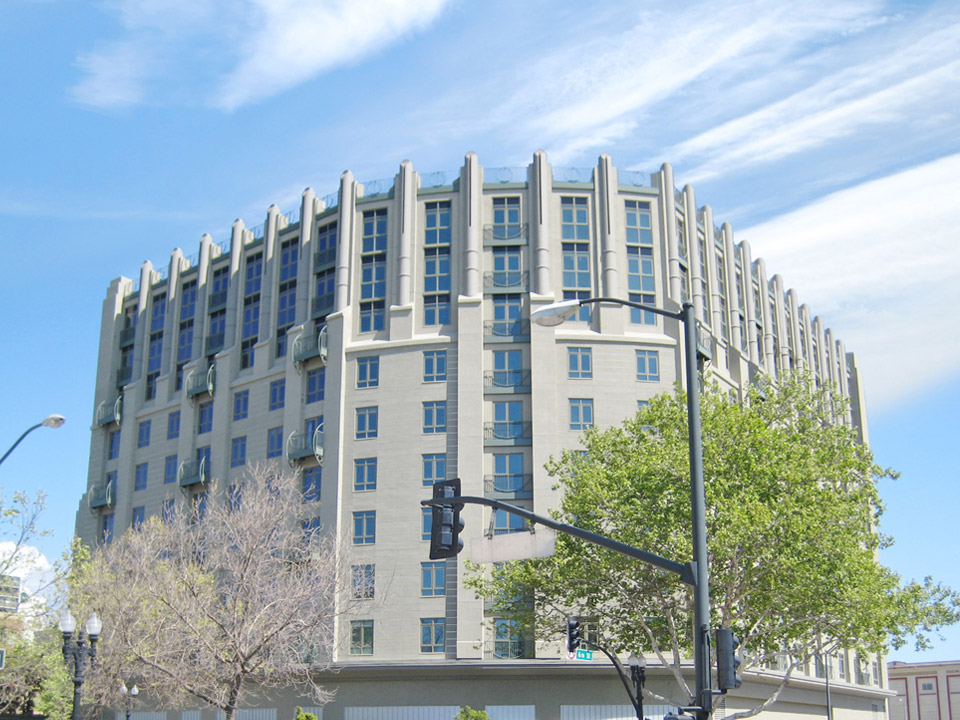

This nine-story ConXR structure atop a 3-story concrete podium offers over 200,000 ft2 of residential space. Common areas include a 20-foot high entry lobby, community room, courtyards and rooftop garden. The rounded building front was designed to accommodate an existing freeway off-ramp and surrounding streets. Street level retail areas complete this innovative building located in historic Chinatown in downtown Oakland, CA.

The ConXR System was able to easily accommodate the architectural features of this unique, art-deco style building.

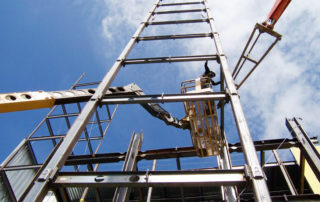

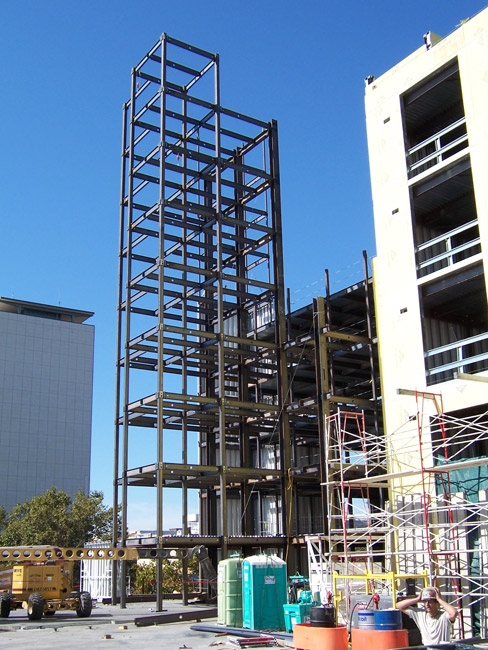

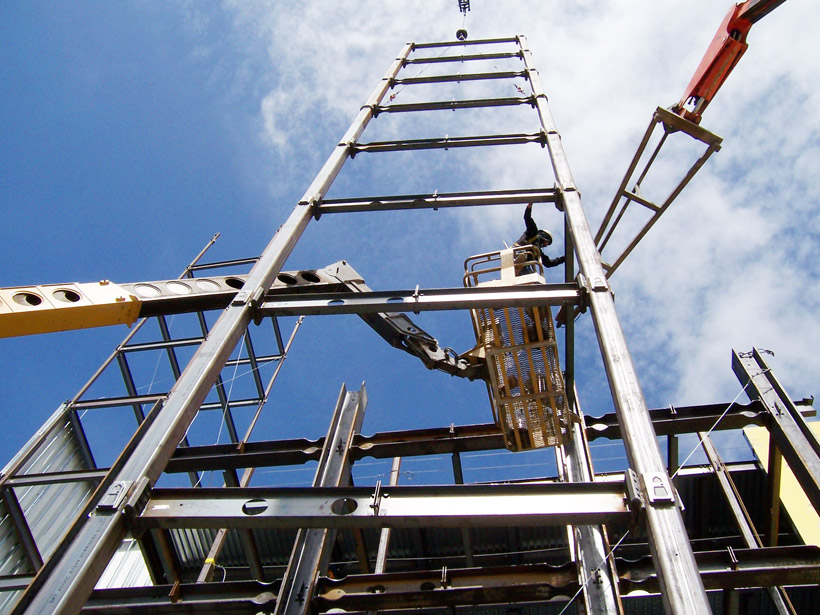

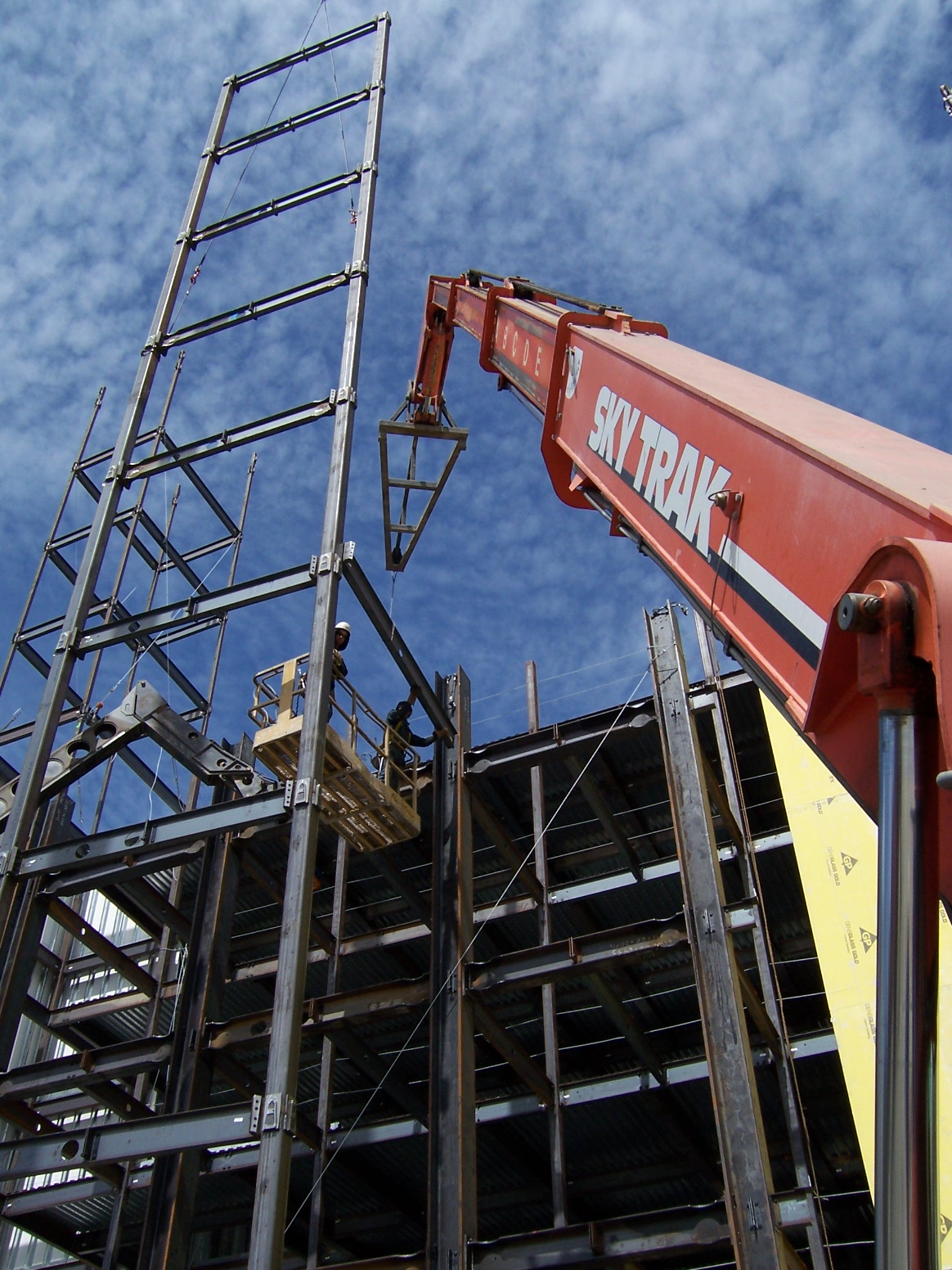

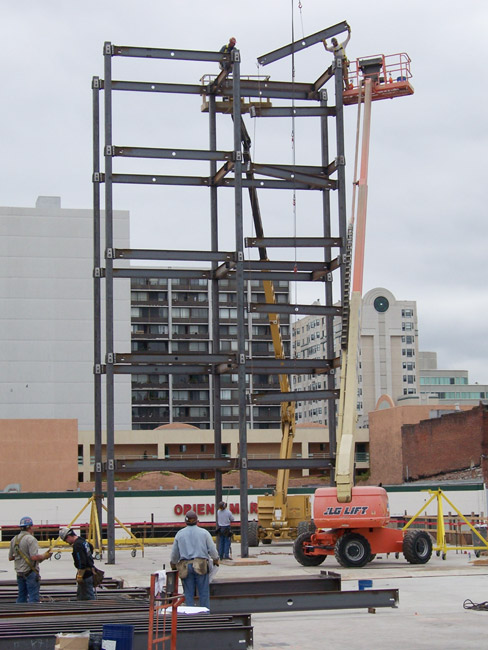

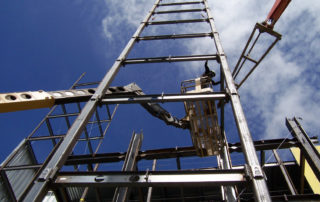

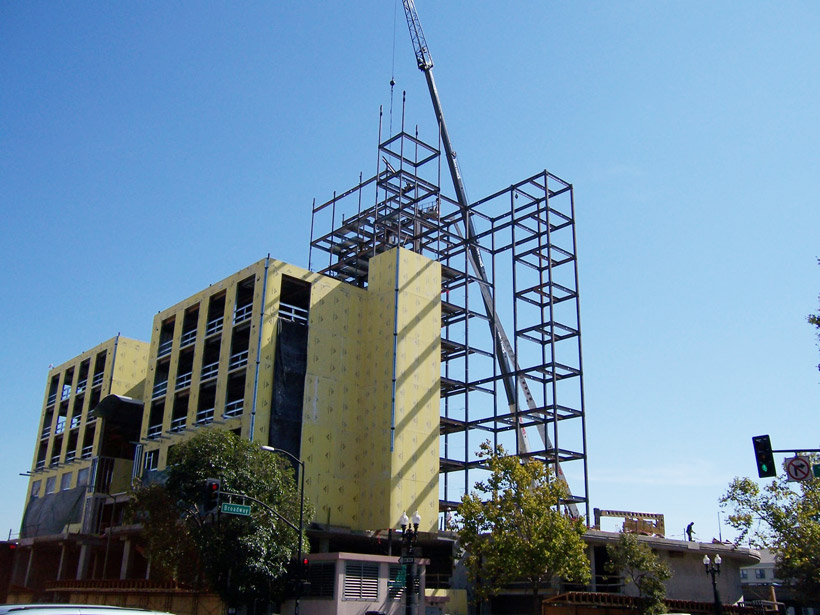

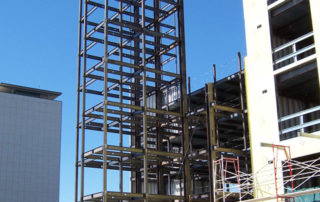

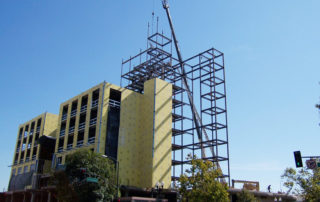

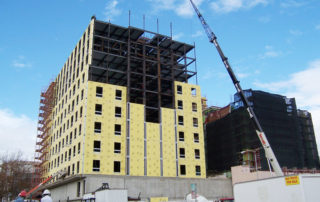

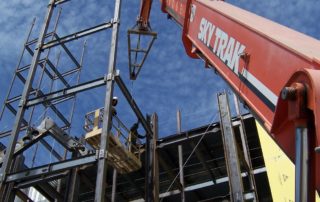

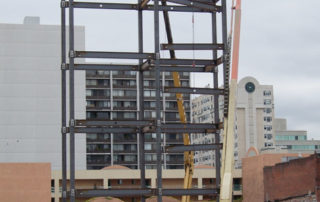

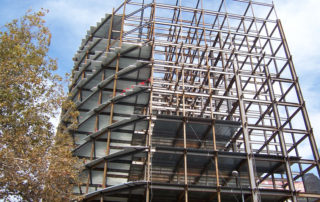

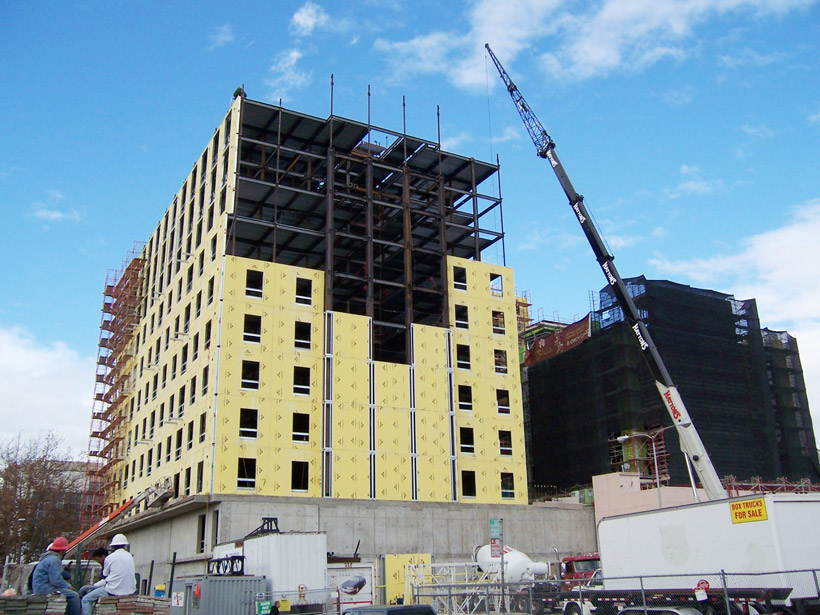

Photo Gallery

This project has a ConXR™ 200 chassis:

Lower & Locking™ Connection

ConXR 200 System Connection
ConXR 200

Height & Assembly Speed

  • 4 to 8 Stories, up to 12

  • 3 to 5,000 ft2 per day

Design Parameters

Column Size 200 mm (8″ HSS)
Beam Depth 12″ (variable weight)
Beam Spans 8′ to 20′
